100C-UAU Thermal Power Laser Sensor

Updated:2025-03-13

Views:2953

  • Brand：Ophir
  • Model：100C-UAU
  • Description: The 100C-UAU is a thin profile thermal power laser sensor 14.5mm thick with mounting threads and with an 18mm aperture. It can measure from 60mW to 4W free standing and 100W when heat sinked. It has t
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

100C-UAU Thermal Power Laser Sensor Description：

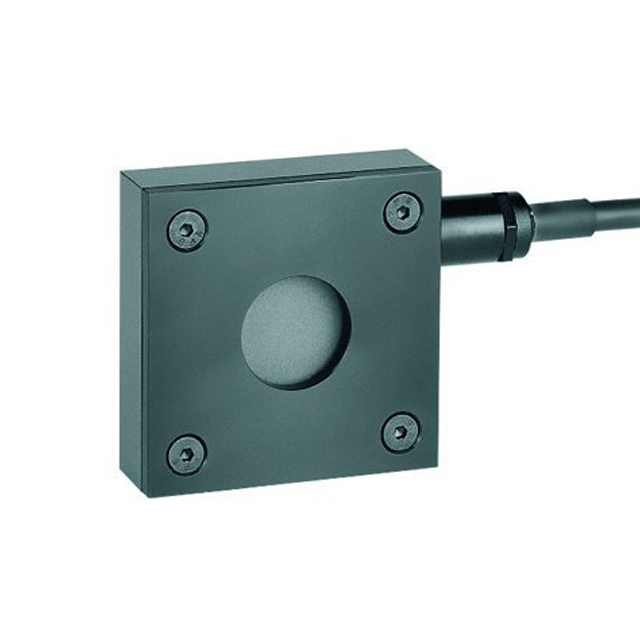

The 100C-UAU is a thin profile thermal power laser sensor 14.5mm thick with mounting threads and with an 18mm aperture. It can measure from 60mW to 4W free standing and 100W when heat sinked. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20μm. It is connected via cable to a separate circuit board with USB output.

100C-UAU Thermal Power Laser Sensor Drawing：

100C-UAU Drawing

100C-UAU Thermal Power Laser Sensor Specifications：

Aperture ?18mm
Spectral Range 0.19-20μm
Power Range 60mW-100W
Energy Range NA
Dimensions 48 L x 48 W x 15 D (mm)
Max Average Power Density 14kW/cm2 at 100W
Response Time 1.2 s
Max Energy Density(for <100ns) 0.3J/cm2
Max Energy Density(for 2ms) 10J/cm2
Max Average Power 100W heat sinked
Communication USB
