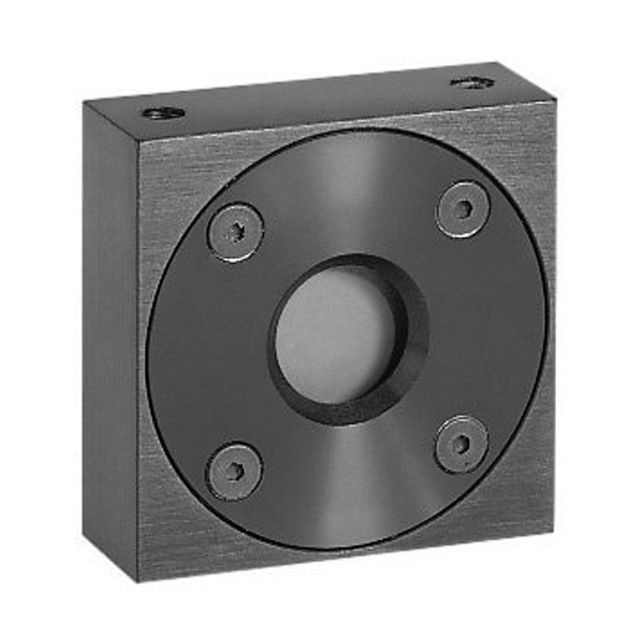

The 20C-UAE is a compact OEM thermal power/energy laser sensor with dimensions only 38x38x14mm. It has a 12mm aperture and measures from 10mW to 4W stand alone and 20W when heat sinked. It can measure energy from 6mJ to 10J. Its broadband coating covers the spectral range from 0.19 to 20μm. It has Ethernet output.
20C-UAE Drawing
| Aperture | ?12mm |
| Spectral Range | 0.19-20μm |
| Power Range | 10mW-20W |
| Energy Range | 6mJ-10J |
| Dimensions | 38 L x 38 W x 14 D (mm) |
| Max Average Power Density | 23kW/cm2 at 20W |
| Response Time | 0.8 s |
| Max Energy Density(for <100ns) | 0.3J/cm2 |
| Max Energy Density(for 2ms) | 10 J/cm2 |
| Max Average Power | 20W heat sinked |
| Communication | Ethernet |
