The 30A-P-17 is a thermal power/energy laser measurement sensor for short pulsed lasers with a 17mm aperture. It can measure from 60mW to 30W and from 40mJ to 30J. It has the P type volume absorber and covers the spectral range from 0.15 to 8μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

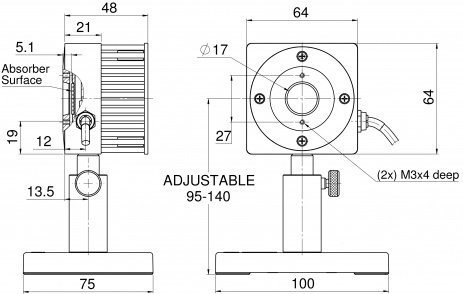

30A-P-17 Drawing
| Absorber Type | P type |
| Aperture | ?17mm |
| Spectral Range | 0.15-8μm |
| Power Range | 60mW-30W |
| Energy Range | 40mJ-30J |
| Backscattered Power | N.A. |
| Dimensions | 64 L x 64 W x 48 D (mm) |
| Max Pulse Energy | 30J |
| Max Average Power Density | 0.05kW/cm2 |
| Response Time | 2.5 s |
| Max Energy Density (for <100ns) | 1J/cm2 |
| Max Energy Density (for 2ms) | 1J/cm2 |
| Max Average Power | 30W |
| BeamTrack Functions | N.A. |
