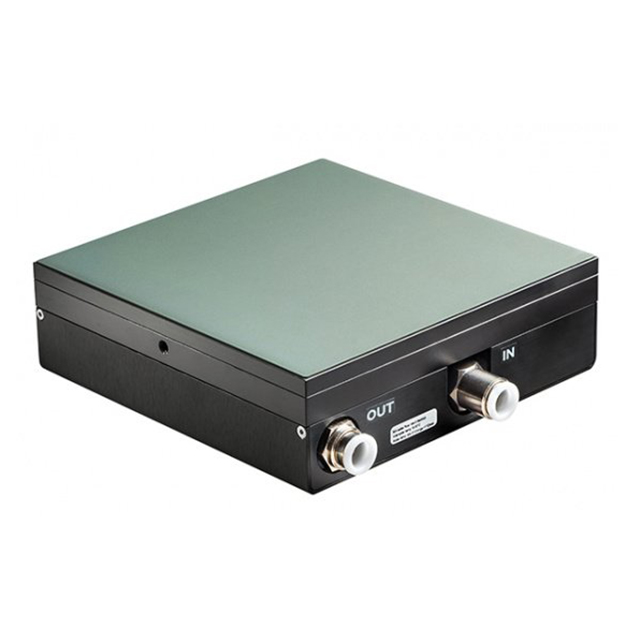

6K-W-BB-200x200 7Z02764 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: 6K-W-BB-200x200
Description: The 6K-W-BB-200x200 is a calorimetric water cooled thermal power/energy laser measurement sensor (which measures input and output water temperature and flow rate). The sensor measures high powers with
Data download

Feedback
WeChat

QQ

Online Service

Product Details

6K-W-BB-200x200 7Z02764 Laser Measurement Sensor Description:

The 6K-W-BB-200x200 is a calorimetric water cooled thermal power/energy laser measurement sensor (which measures input and output water temperature and flow rate). The sensor measures high powers with a very large 198x198mm aperture. It can measure power from 200W to 6,000W. It covers the spectral range from 0.19 - 20μm. The sensor has two operation modes:

Supplied standard 5 meter cable for connecting to a meter or PC interface with StarLab PC App to display power only.

Supplied RS232 cable for connecting directly to a PC with WaterFlowMeter PC App to display power, water temp. and water flow rate.

6K-W-BB-200x200 7Z02764 Laser Measurement Sensor Drawing：

6K-W-BB-200x200 Drawing

6K-W-BB-200x200 7Z02764 Laser Measurement Sensor Specification：

Absorber Type	Broadband
Aperture	198 x 198 mm
Spectral Range	0.19-20μm
Power Range	200W-6000W
Energy Range	N.A.
Backscattered Power	N.A.
Dimensions	200 L x 200 W x 61 D (mm)
Max Pulse Energy	N.A.
Max Average Power Density	0.4kW/cm2
Response Time	50 s
Max Energy Density (for <100ns)	0.3J/cm2
Max Energy Density (for 2ms)	10J/cm2
Max Average Power	6000W
BeamTrack Functions	N.A.
