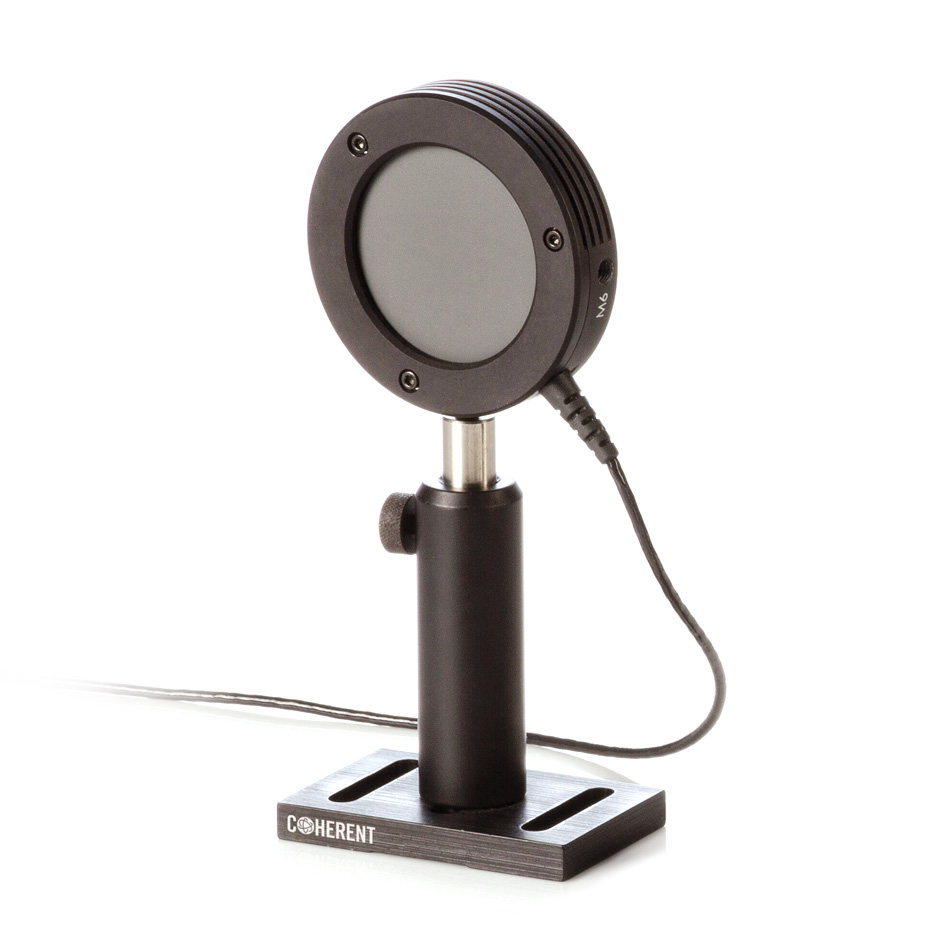

Coherent EnergyMax-USB J-50MB-HE Energy Sensor

Updated:2025-03-13

Views:2498

  • Brand: Coherent
  • Model: EnergyMax-USB J-50MB-HE
  • Description: The EnergyMax-USB J-50MB-HE energy sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1110573) is available.A large heatsink (PN 1123432) is available to extend the
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Coherent EnergyMax-USB J-50MB-HE Energy Sensor Description：

Datasheet User's Manual

The EnergyMax-USB J-50MB-HE energy sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1110573) is available.

A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 1.6 mJ to 2J at up to 300 pps. Direct USB interface.

Key Features:

190 nm to 12 μm spectral range

50mm diameter active area

1.6 mJ to 2J energy range

300 pps repetition rate operation

Direct USB interface

ISO 17025 accredited

Specifications

Cable Type
USB
Active Area Diameter
50 mm
Detector Coating
MaxBlack
Energy Range
1.6 mJ to 2J
Wavelength Range
190 nm to 12 μm
Noise Equivalent Energy
<160 μJ
Maximum Pyroelectric Rep. Rate (pulses per second)
300
Wavelength Range (micrometers)
0.19 to 12
Maximum Average Power (watts)
10
Maximum Pulse Width (microseconds)
57
Maximum Energy Density (millijoules per square centimeter)
500 (at 1064 nm, 10 ns)
Diffuser
No
Calibration Uncertainty (%)(k=2)
±2
Energy Linearity (%)
±3
Calibration Wavelength (nanometers)
1064
Cable Length (meters)
3
