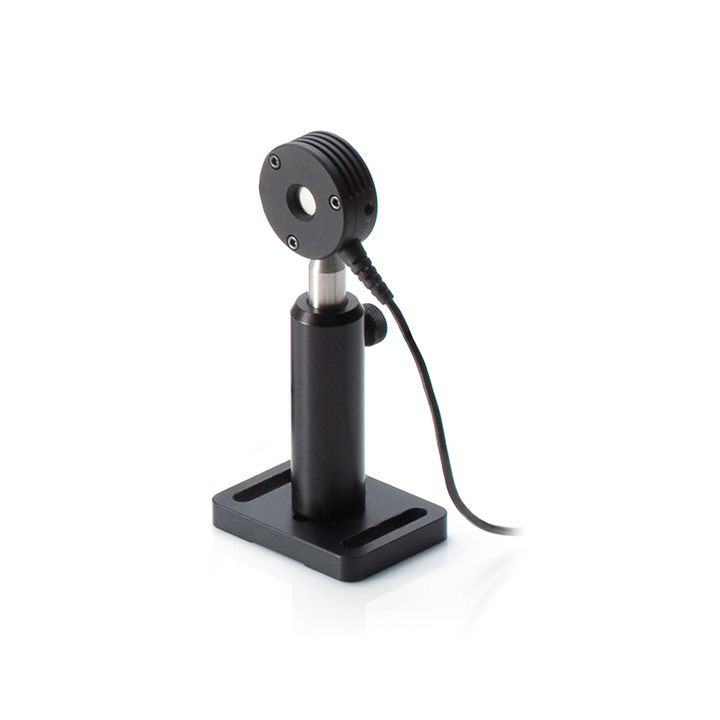

Coherent J-10MT-10KHZ Energy Sensor

Updated:2025-03-13

Brand: Coherent
Model: J-10MT-10KHZ
Description: The J-10MT-10KHZ energy sensor is terminated in a SmartProbe DB25 cable and is directly compatible with LabMax-TOP and LabMax-Pro SSIM meters.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent J-10MT-10KHZ Energy Sensor Description：

Datasheet

The J-10MT-10KHZ energy sensor is terminated in a SmartProbe DB25 cable and is directly compatible with LabMax-TOP and LabMax-Pro SSIM meters.

A USB-direct (PN 1191445) model is available.

Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 100 nJ to 200 μJ at up to 10000 pps.

Key Features:

190 nm to 2.1 μm spectral range

10 mm diameter active area

100 nJ to 200 μJ energy range

10000 pps repetition rate operation

ISO 17025 accredited

Specifications

Cable Type

J DB-25

Active Area Diameter

10 mm

Detector Coating

Diffuse Metallic

Energy Range

100 nJ - 200 μJ

Wavelength Range

190 nm to 2100 nm

Noise Equivalent Energy

<10 nJ

Maximum Pyroelectric Rep. Rate (pulses per second)

10000

Maximum Average Power (watts)

Maximum Pulse Width (microseconds)

1.7

Maximum Energy Density (millijoules per square centimeter)

50 (at 1064 nm, 10 ns)

Calibration Uncertainty (%)(k=2)

±2

Energy Linearity (%)

±3

Calibration Wavelength (nanometers)

1064

Cable Length (meters)

2.5
