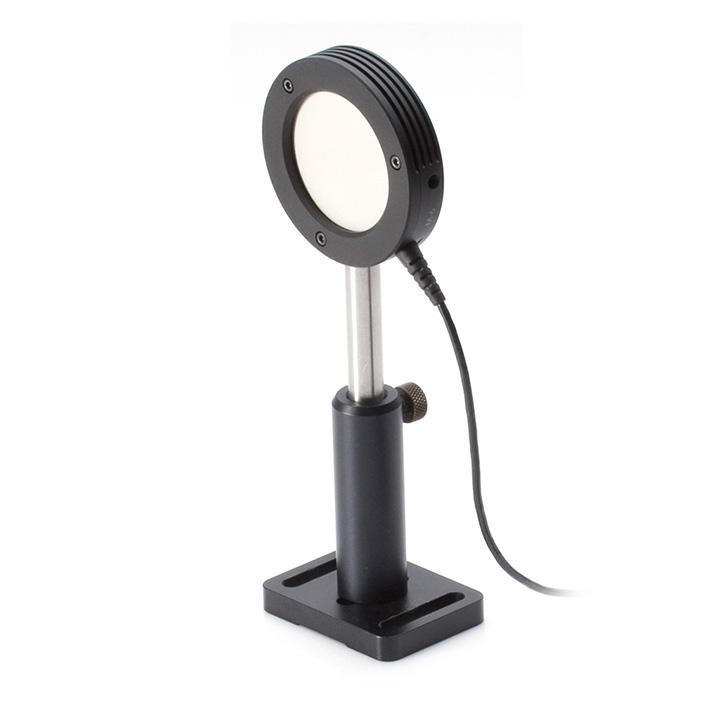

Coherent J-50MT-10KHZ Energy Sensor

Updated:2025-03-13

Views:2528

  • Brand: Coherent
  • Model: J-50MT-10KHZ
  • Description: The J-50MT-10KHZ energy sensor is terminated in a SmartProbe DB25 cable and is directly compatible with LabMax-TOP and LabMax-Pro SSIM meters.USB-direct (PN 1191447) and RS232-direct (PN 1191433) mode
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Coherent J-50MT-10KHZ Energy Sensor Description：

Datasheet

The J-50MT-10KHZ energy sensor is terminated in a SmartProbe DB25 cable and is directly compatible with LabMax-TOP and LabMax-Pro SSIM meters.

USB-direct (PN 1191447) and RS232-direct (PN 1191433) models are available.

A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 500 μJ - 1J at up to 10000 pps.

Key Features:

190 nm to 2.1 μm spectral range

50mm diameter active area

500 μJ - 1J energy range

10000 pps repetition rate operation

ISO 17025 accredited

Specifications

Cable Type
J DB-25
Active Area Diameter
50 mm
Detector Coating
Diffuse Metallic
Energy Range
500 μJ - 1 J
Wavelength Range
190 nm to 2100 nm
Noise Equivalent Energy
<16 μJ
Maximum Average Power (watts)
20
Maximum Pulse Width (microseconds)
1.7
Maximum Energy Density (millijoules per square centimeter)
500 (at 1064 nm, 10 ns)
Diffuser
No
Calibration Uncertainty (%)(k=2)
±2
Energy Linearity (%)
±3
Calibration Wavelength (nanometers)
1064
Cable Length (meters)
2.5
