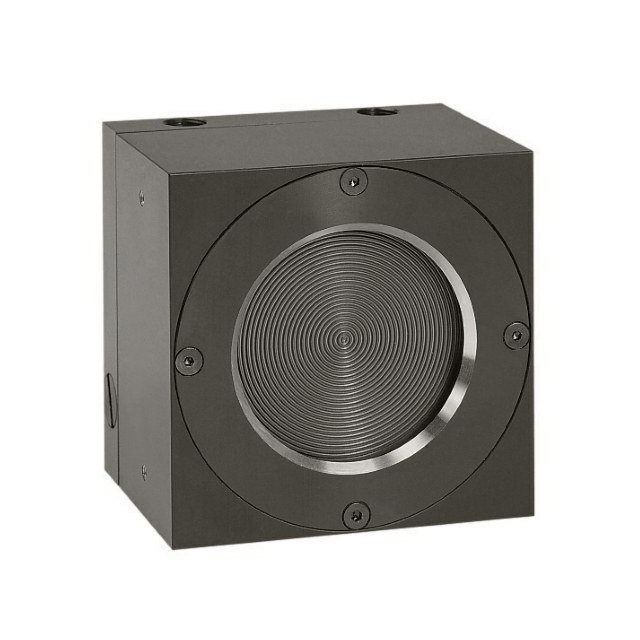

The L150C-UAF is an OEM thermal power/energy laser sensor with a 50mm aperture. It can measure from 200mW to 20W free standing and 150W when heat sinked. It can measure energy from 80mJ to 100J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20μm. It has analog and RS232 output.
L150C-UAF Drawing
| Aperture | ?50mm |
| Spectral Range | 0.19-20μm |
| Power Range | 0.2W-150W |
| Energy Range | 80mJ-100J |
| Dimensions | 80 L x 80 W x 45 D (mm) |
| Max Average Power Density | 12kW/cm2 at 150W |
| Response Time | 2.5 s |
| Max Energy Density(for <100ns) | 0.3J/cm2 |
| Max Energy Density(for 2ms) | 10J/cm2 |
| Max Average Power | 150W heat sinked |
| Communication | RS232, Analog |
