The L40(200)A-EX-50 is a thermal power/energy laser measurement sensor for use with excimer lasers. It has a 50mm aperture and can measure from 300mW to 35W continuously and to 200W intermittently. It can measure energy from 100mJ to 200J. Its EX absorber has a damage threshold of 0.5J/cm2 and covers the spectral range from 0.15 - 0.7um and 10.6μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

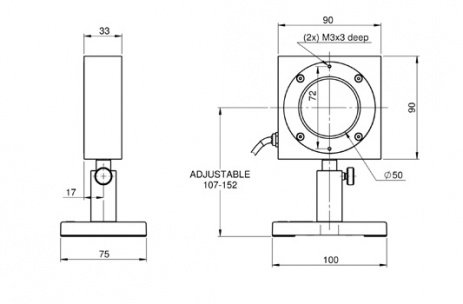

L40(200)A-EX-50 Drawing
| Absorber Type | EX |
| Aperture | ?50mm |
| Spectral Range | 0.15-0.7μm, 10.6μm |
| Power Range | 300mW-200W |
| Energy Range | 100mJ-200J |
| Dimensions | 90 L x 90 W x 33 D (mm) |
| Max Pulse Energy | 200J |
| Max Average Power Density | 1.5kW/cm2 |
| Response Time | 2.5 s |
| Max Energy Density (for <100ns) | 0.5J/cm2 |
| Max Energy Density (for 2ms) | 12J/cm2 |
| Max Average Power | 200W |
