The L50(150)A-PF-35 is a thermal power/energy laser measurement sensor for high peak power pulsed lasers. It has a 35mm aperture and can measure from 100mW to 150W intermittently and to 50W continuously. It measures energy from 50mJ to 300J. It has a damage threshold of up to 3J/cm2 for ns pulses and covers the spectral range from 0.15 to 20μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

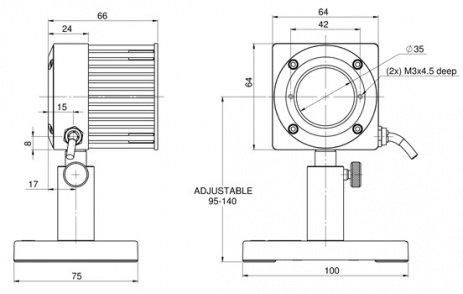

L50(150)A-PF-35 Drawing
| Absorber Type | PF |
| Aperture | ?35mm |
| Spectral Range | 0.15-20μm |
| Power Range | 100mW-150W |
| Energy Range | 50mJ-300J |
| Dimensions | 64 L x 64 W x 66 D (mm) |
| Max Pulse Energy | 300J |
| Max Average Power Density | 3kW/cm2 |
| Response Time | 2 s |
| Max Energy Density (for <100ns) | 1.5J/cm2 |
| Max Energy Density (for 2ms) | 15J/cm2 |
| Max Average Power | 150W |
