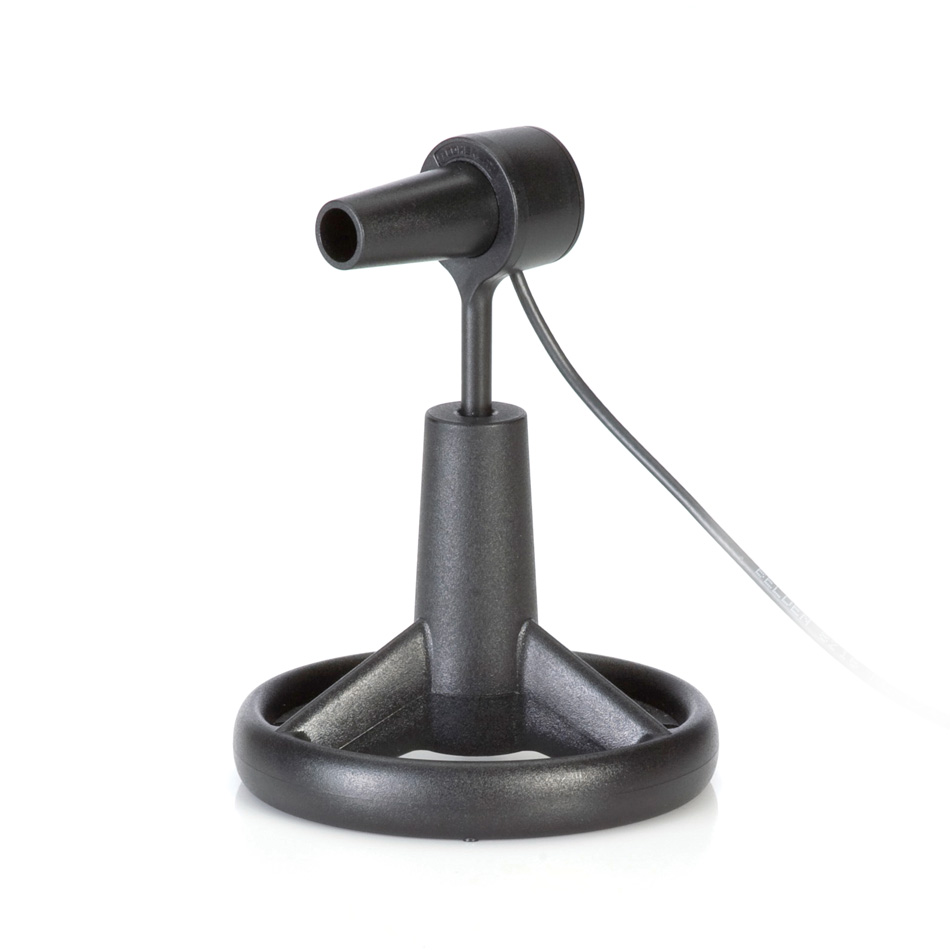

LM-2 high-sensitivity optical sensors are ideal for measurement in the nW to low mW level. An optional 1000:1 attenuator is available (PN 1098318) to support operation up to 5 Watts. SMA-type (PN 1098589) and FC/PC-type (PN 1098339) fiber optic adapters are available.
The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with LabMax meters. For compatibility with other catalog meters choose the OP-2 VIS model (PN 1098401).
Low power UV-enhanced silicon semiconductor power sensor for measuring CW lasers between 10 nW and 30 mW.
Key Features:
10 nW to 30 mW range
6 mm diameter active area
UV-enhanced silicon detector
250 to 400 nm spectral range
Fiber adapters available
ISO 17025 accredited
