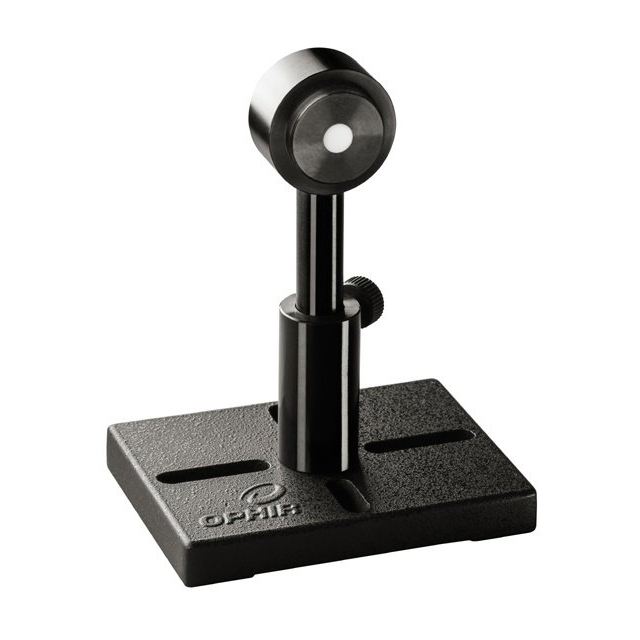

The PD300RM-UV LED and laser radiometer replaces traditional radiometers which are calibrated to a single wavelength (254nm, 365nm, etc.), offering calibration over a broad spectral range, which the user can access by entering any wavelength in the calibration range. The PD300RM is a general purpose circular geometry photodiode irradiance and dosage sensor with an 8mm aperture and a cosine corrected diffuser. Its spectral range is 200-850nm and its irradiance measuring range is 100nW/cm2 - 250mW/cm2. The sensor comes with a 1.5 meter cable for connecting to StarBright & StarLite meters or Juno+ PC interface.

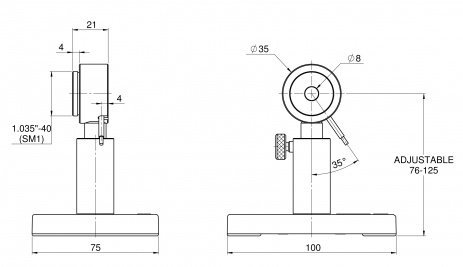

PD300RM-UV Drawing
| Aperture | ?8mm |
| Spectral Range | 200-850nm |
| Irradiance Range | 100nW/cm2-250mW/cm2 |
| Dimensions | ?35 W x 21 D (mm) |
| Max Average Power Density | 10W/cm2 |
| Response Time | 0.2 s |
| Thermal Coefficient | -0.03%/°C |
| f'2 Cosine Correction Factor Accuracy | 5% |
