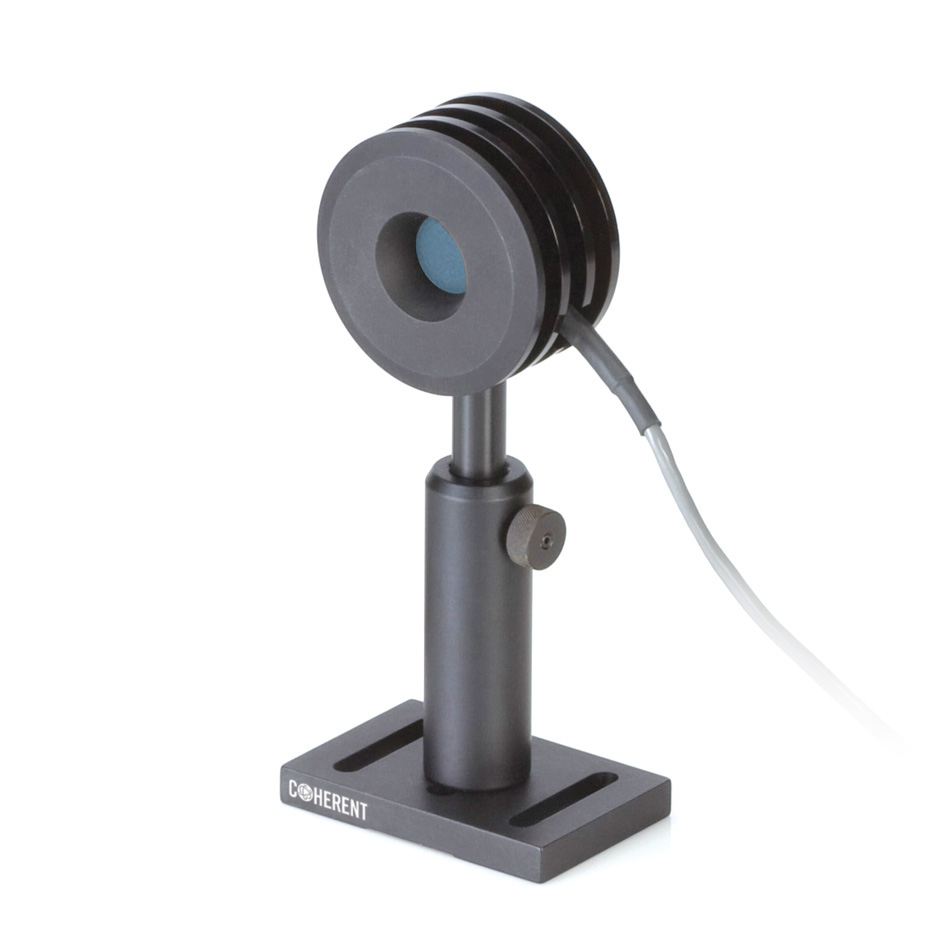

Coherent PM10X Compact Laser Power Sensor

Updated:2025-03-13

Brand: Coherent
Model: PM10X
Description: This PM10X sensor is a compact laser power sensor intended for measuring lasers up to 10W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spectral compensa
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PM10X Compact Laser Power Sensor Description：

Datasheet

This PM10X sensor is a compact laser power sensor intended for measuring lasers up to 10W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spectral compensation is available from 157 nm to 1064 nm.

The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog. A USB-direct model (PN 1184874) is available.

Convectively cooled thermopile sensor with UV coating for measuring pulsed & CW lasers between 10 mW and 10W.

Key Features:

10 mW to 10W range

19 mm diameter active area

UV coating

0.15 to 1 μm spectral range

Convective air-cooled

ISO 17025 accredited

Specifications

Cable Type

PM DB-25

Cooling Type

Air

Power Range

10 mW to 10W

Active Area Diameter

19 mm

Detector Coating

Noise Equivalent Power (milliwatts)

0.2

Maximum Intermittent Power (watts)(<5 minutes)

Long-Pulse Joules Range (joules)

0.5 to 10

Wavelength Range (micrometers)

0.15 - 1

Maximum Power Density (kilowatts per square centimeter)

Maximum Energy Density (millijoules per square centimeter)

600, 1064 nm, 10 ns

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±1

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

514

Cable Length (meters)
