current position:home page>Products>Environmental Instrument>vaisala>

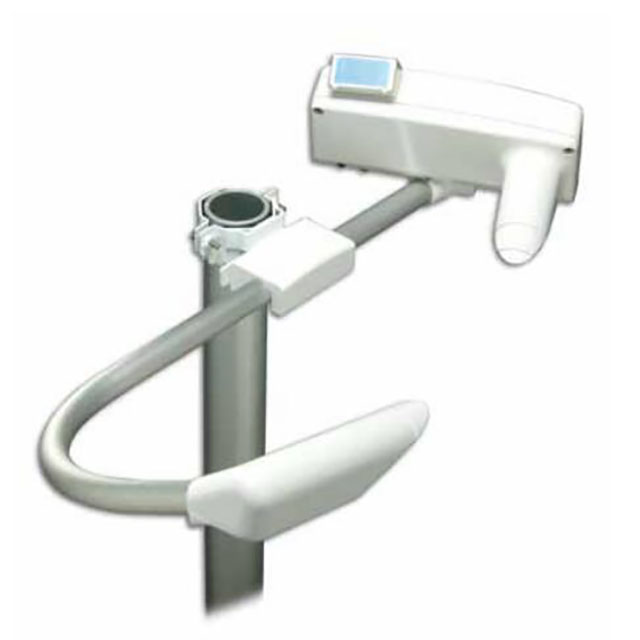

PWD22-PWD52 Visibility Sensor

Updated:2025-03-13

Views:4127

Product Details

PWD22-PWD52 Describes the visibility Sensor:

PWD22 Datasheet PWD52 Datasheet

Measure main visibility and detect precipitation type

Vaisala's PWD range of existing weather detectors and visibility sensors provide you with off-the-shelf accuracy and reliability

Accurate, traceable visibility measurements

The PWD22 and PWD52 are calibrated with reference to high-precision transmissors, use proven forward scattering measurement principles to record meteorological optical ranges (MOR) and provide well-protected optics to prevent contamination.

Reliable record

The PWD series has been installed worldwide and has undergone rigorous testing procedures. In the field, Vaisala's PWD sensors have a very low failure rate and demonstrate strong robustness through high performance in harsh climates from sea to desert and from airfield to roadside deployments.

Visibility measurement for a variety of applications

Our systems provide remote visibility measurements for a variety of environments from ports and coastal areas to heliports and even wind turbines. Wherever visibility measurements are required, Vaisala provides a cost-effective and reliable solution.

General Survey

? Accurate, traceable mainstream visibility measurements

? Detecting precipitation type

? Measure the intensity and accumulation of precipitation

? Estimated snow cover

? Indicates the reason for the reduced visibility

? Solid and reliable

? Weatherproof design reduces maintenance requirements

? Easy to install and integrate

PWD22-PWD52 Visibility sensor Specifications:

Visibility (MOR) measurement
PWD22
Range 10...20000m
PWD52
Range 10...50000m
Current weather survey
PWD22/52
Identify 7 different precipitation types (rain, freezing rain, drizzle, frozen drizzle, sleet, snow, ice particles) Fog, light fog, haze (smoke, dust) or clear
Report WMO 4680(SYNOP)、4678(METAR) and the NWS code table
49 different codes in the WMO 4680 code table are supported
Working environment
Temp
Humidity
-40...+60°C
0...100 %RH
INPUT and output
Output RS232、RS485、Analog current and relay control
Supply Voltage 12 VDC...50 VDC(Electron device)
24VAC or 24VDC for heater
Power Consumption
PWD22 and PWD52 6 W
Other indicators
Size 222 mm (h)x695 mm (w)x432 mm (d)
(8.73”(h)x27.35”(w)x16.99”(d))
Weight 3 kilograms (6.61 pounds))
