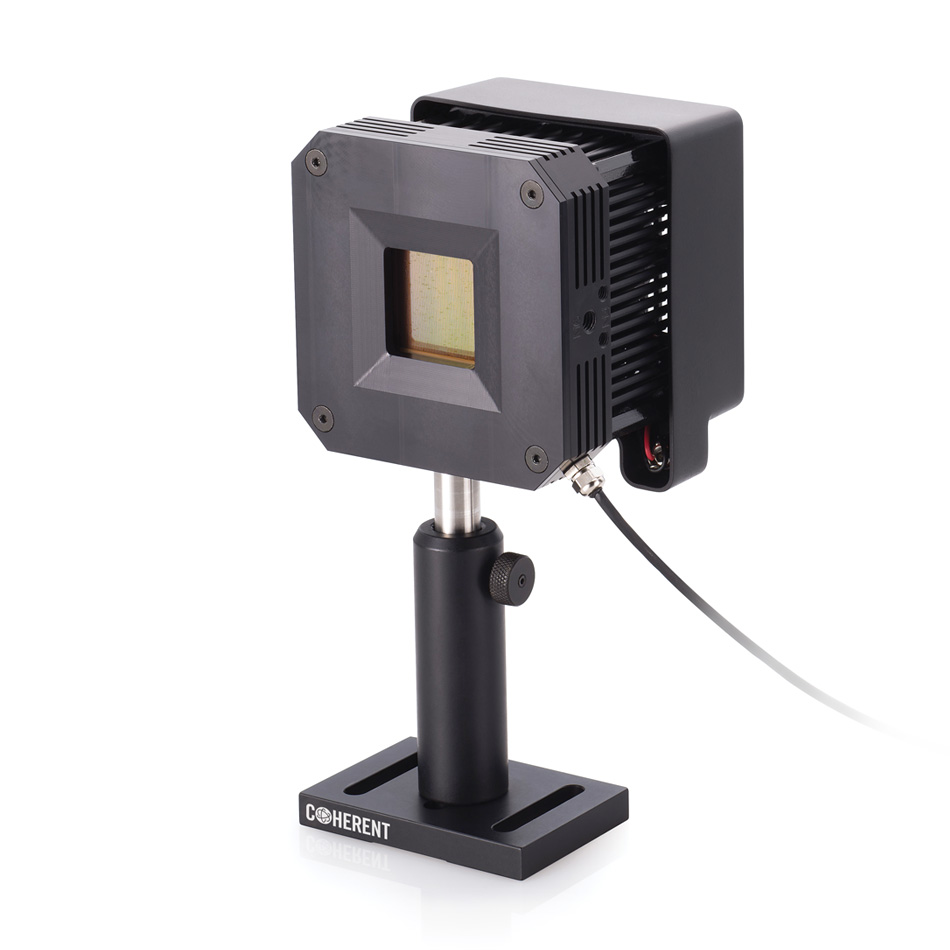

Coherent PowerMax-Pro USB 150F HD Fast Power Sensor

Updated:2025-03-13

Views:3106

  • Brand: Coherent
  • Model: PowerMax-Pro USB 150F HD
  • Description: This PowerMax-Pro USB 150F BB sensor incorporates a fast thin-film detector technology that responds in tens of microseconds. This model utilizes a flat, broadband coating and is intended for measuri
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Coherent PowerMax-Pro USB 150F HD Fast Power Sensor Description：

Datasheet User's Manual

This PowerMax-Pro USB 150F BB sensor incorporates a fast thin-film detector technology that responds in tens of microseconds. This model utilizes a flat, broadband coating and is intended for measuring lasers up to 150W. The 150F model designator represents a fan-cooled model.

The sensor is terminated in a USB cable for directly interfacing with a PC. A DB25 model (PN 1323848) is available.

Fast, thin-film transverse thermoelectric, fan-cooled power sensor with flat broadband coating for measuring lasers between 200 mW and 150W. Direct USB interface.

Key Features:

200 mW to 150W range

Fast thin-film detector

50 μsec rise time

30x30 mm active area

30x30 mm active area

4 to 11 μm spectral range

Fan-cooled

Direct USB interface

ISO 17025 accredited

Specifications

Cable Type
USB
Cooling Type
Fan
Active Area Size
30 x 30 mm
Detector Coating
BB
Power Range for Continuous Usage Air Cooled
200 mW to 150W
Power Range for Continuous Usage Water-cooled
Not applicable
Wavelength Range
400 nm to 11 μm
Max Peak Power (for modulated lasers)
200W (> 1 μsec pulses)
Maximum Intermittent Power (watts) (air-cooled <5 minutes)
65
Noise Equivalent Power (milliwatts) Standard Mode
4
Noise Equivalent Power (milliwatts) High Speed Mode
8
Noise Equivalent Power (milliwatts) Snapshot Mode
16
Maximum Power Density (kilowatts per square centimeter)
0.2 (at 150W)
Max. Peak Power Density (kilowatts per square centimeter)
14
Rise Time (microseconds)
≤50
Minimum Beam Size (millimeters)
2.0 (1.0 mm - up to 3% error)
Calibration Uncertainty (%)(k=2)
±2
Power Linearity (%)
±5
Spectral Compensation Accuracy (%)
±3
Calibration Wavelength (nanometers)
801
Cable Length (meters)
4.2m (13.8 ft.)
Spatial Uniformity (%)(center 75% of aperature; 2.5 millimeter beam)
±5
Max. Energy Density
33 (10 ns; 1064 nm)
