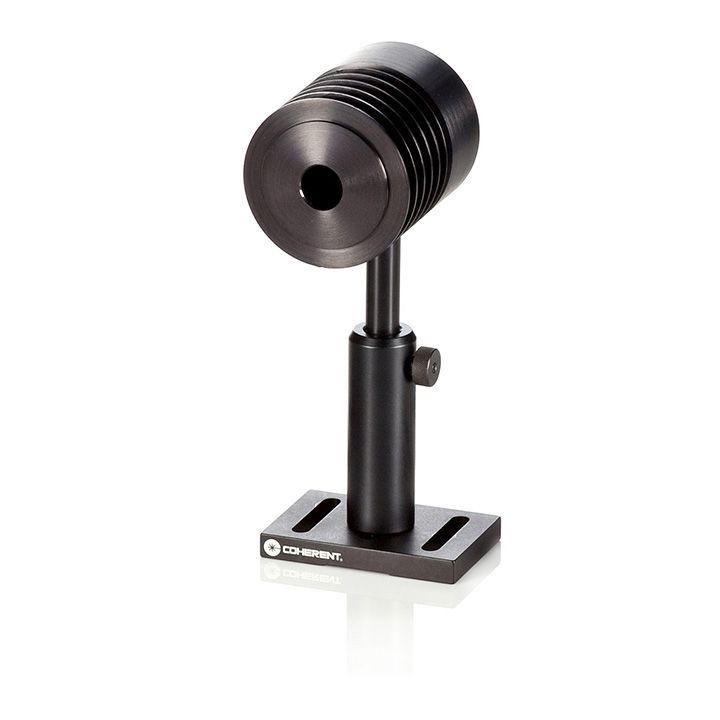

Coherent PowerMax-RS LM-10 Laser Power Sensor

Updated:2025-03-13

Brand: Coherent
Model: PowerMax-RS LM-10
Description: This PowerMax-RS LM-10 sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. A DB25 model (PN 1098304) is available.SMA fiber adapter (PN 1098589) and FC/PC
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PowerMax-RS LM-10 Laser Power Sensor Description：

Datasheet

This PowerMax-RS LM-10 sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. A DB25 model (PN 1098304) is available.SMA fiber adapter (PN 1098589) and FC/PC fiber adapter (PN 1098339) accessories are available.

These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.

Convectively cooled thermopile for measuring pulsed & CW lasers up to 10W with beam position measurement. Direct RS232 interface.

Key Features:

10 mW to 10W range

16 mm diameter active area

Spectrally flat broadband coating

0.25 to 10.6 μm spectral range

Convective air-cooled

Fiber adapters available

Direct RS232 interface

ISO 17025 accredited

Specifications

Cable Type

RS232

Cooling Type

Air

Power Range

10 mW to 10W

Active Area Diameter

16 mm

Detector Coating

Broadband

Noise Equivalent Power (milliwatts)

0.4

Maximum Intermittent Power (watts)(<5 minutes)

Long-Pulse Joules Range (joules)

0.5 to 10

Wavelength Range (micrometers)

0.25 to 10.6 μm

Maximum Power Density (kilowatts per square centimeter)

6 kW/cm2

Maximum Energy Density (millijoules per square centimeter)

600 mJ/cm2 10 ns, 1064 nm

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±2

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

10600

Cable Length (meters)

0.3
