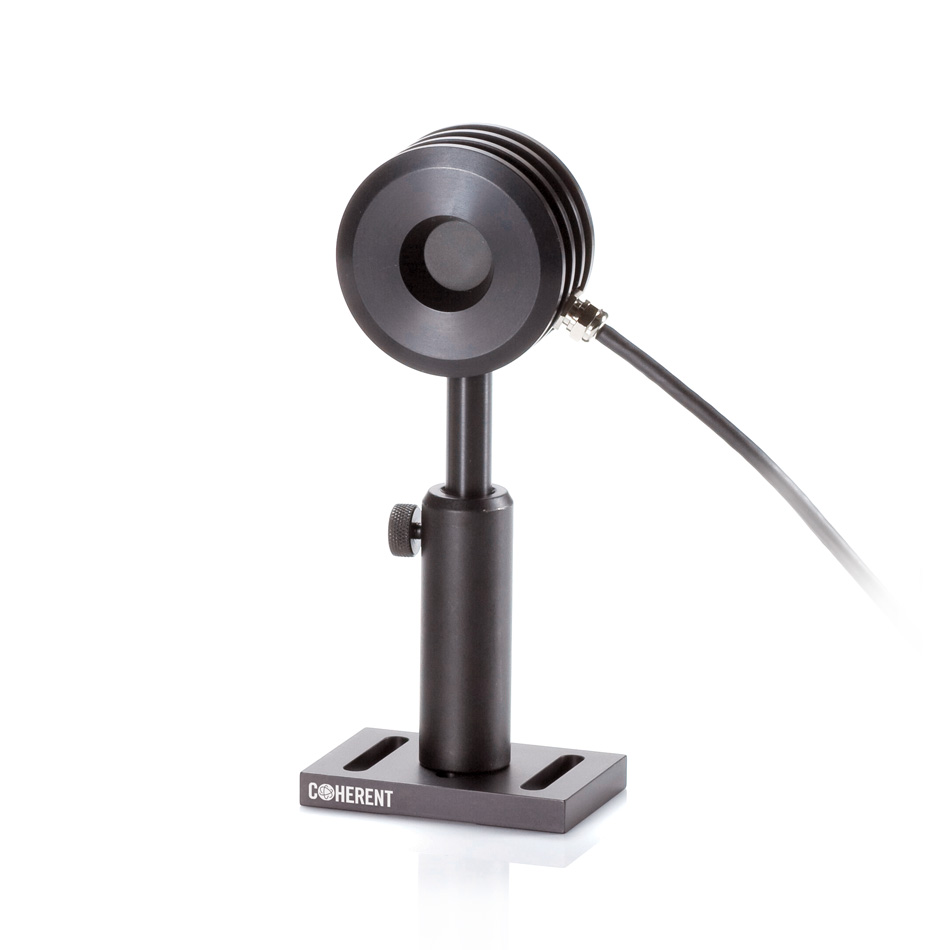

Coherent PowerMax-RS PM10X Compact Laser Power Sensor

Updated:2025-03-13

Views:2397

  • Brand: Coherent
  • Model: PowerMax-RS PM10X
  • Description: This PowerMax-RS PM10X sensor is a compact laser power sensor intended for measuring lasers up to 10W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spect
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Coherent PowerMax-RS PM10X Compact Laser Power Sensor Description：

Datasheet User's Manual

This PowerMax-RS PM10X sensor is a compact laser power sensor intended for measuring lasers up to 10W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spectral compensation is available from 157 nm to 1064 nm.

The sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. DB25 (PN 1098423) and USB direct (PN 1184874) models are available.

Convectively cooled thermopile sensor with UV coating for measuring pulsed & CW lasers between 10 mW and 10W. Direct RS232 interface.

Key Features:

5 mW to 10W range

19 mm diameter active area

UV coating

0.19 to 1 μm spectral range

Convective air-cooled

Direct RS232 interface

ISO 17025 accredited

Specifications

Cable Type
RS232
Cooling Type
Air
Power Range
5 mW to 10W
Active Area Diameter
19 mm
Detector Coating
UV
Noise Equivalent Power (milliwatts)
0.2
Maximum Intermittent Power (watts)(<5 minutes)
30
Long-Pulse Joules Range (joules)
0.5 to 10
Wavelength Range (micrometers)
0.15 to 1 μm
Maximum Power Density (kilowatts per square centimeter)
6 kW/cm2
Maximum Energy Density (millijoules per square centimeter)
600 (1064 nm, 10 ns)
Response Time, Speed-up On, 0% to 95% (seconds)
2
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±1
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
514
Cable Length (meters)
0.3
