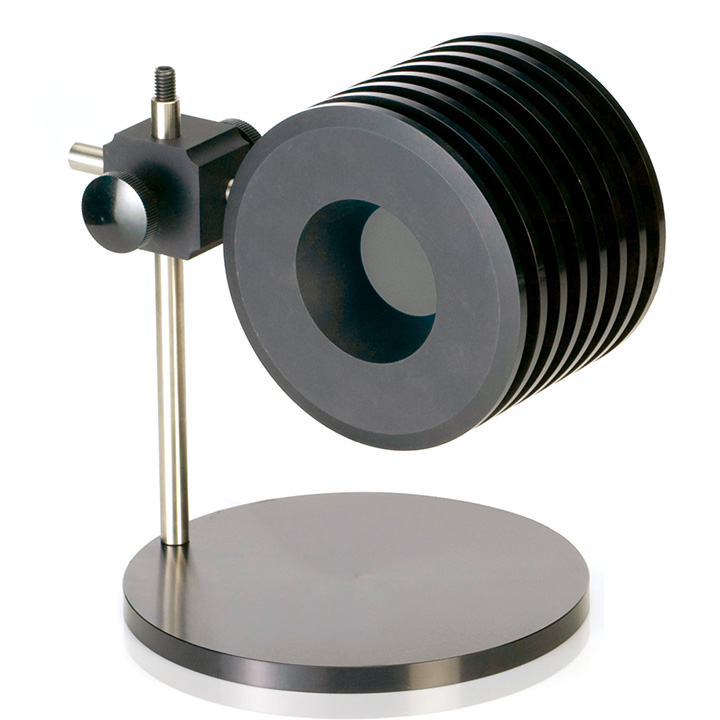

Coherent PowerMax-RS PM150-50 Laser Power Sensor

Updated:2025-03-13

Brand: Coherent
Model: PowerMax-RS PM150-50
Description: This PowerMax-RS PM150 sensor is a convectively-cooled laser power sensor intended for measuring lasers up to 150W.The sensor is terminated in an RS232 cable that interfaces directly to a PC or indust
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PowerMax-RS PM150-50 Laser Power Sensor Description：

User's Manual

This PowerMax-RS PM150 sensor is a convectively-cooled laser power sensor intended for measuring lasers up to 150W.The sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. DB25 (PN 1098398) and USB direct (PN 1223336) models are available.

Thermopile sensor for measuring pulsed & CW lasers between 300 mW and 150W. Direct RS232 interface.

Key Features:

300 mW to 150W range

50 mm diameter active area

Spectrally flat broadband coating

0.19 to 11 μm spectral range

Convective air-cooled

Direct RS232 interface

ISO 17025 accredited

Specifications

Cable Type

RS232

Cooling Type

Air

Power Range

300 mW to 150W

Active Area Diameter

50 mm

Detector Coating

Broadband

Noise Equivalent Power (milliwatts)

Maximum Intermittent Power (watts)(<5 minutes)

300

Long-Pulse Joules Range (joules)

1 to 150

Wavelength Range (micrometers)

0.19 to 11 μm

Maximum Power Density (kilowatts per square centimeter)

6 kW/cm2

Maximum Energy Density (millijoules per square centimeter)

600 (1064 nm, 10 ns)

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±2

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

10600

Cable Length (meters)

0.3
