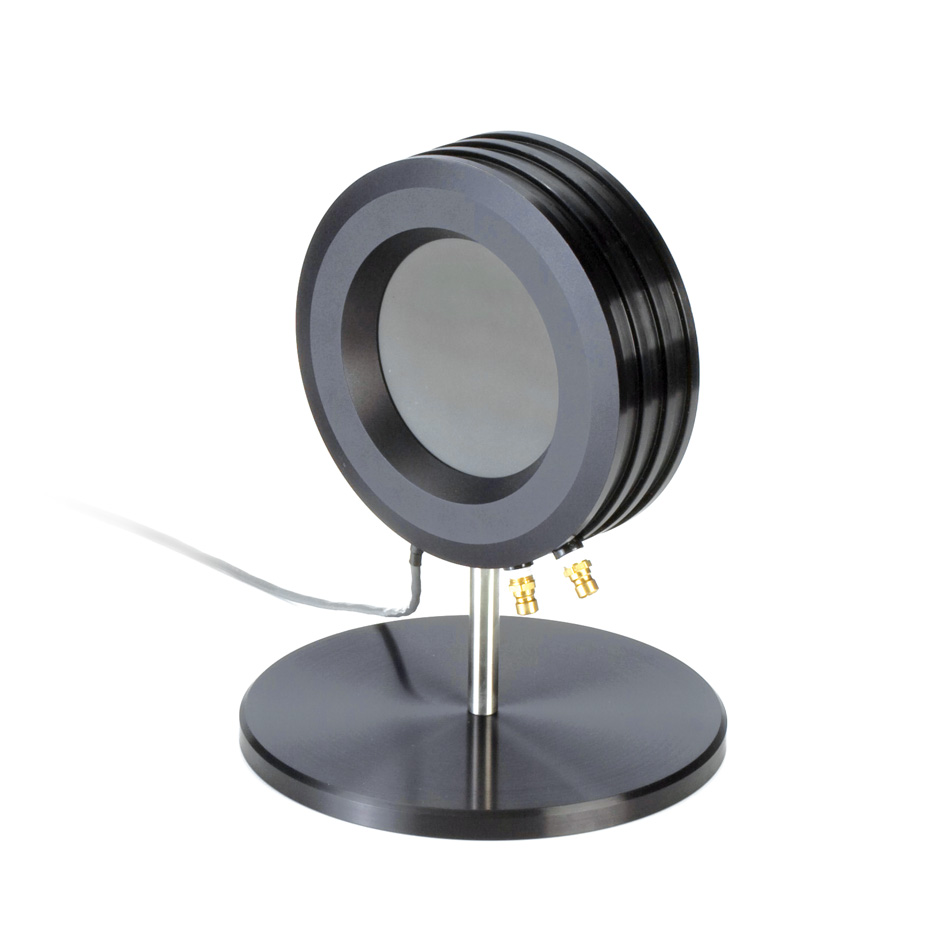

Coherent PowerMax-RS PM1KX-100 Power Sensor

Updated:2025-03-13

Brand: Coherent
Model: PowerMax-RS PM1KX-100
Description: This PowerMax-RS PM1K-100 sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 1000W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavel
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PowerMax-RS PM1KX-100 Power Sensor Description：

User's Manual

This PowerMax-RS PM1K-100 sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 1000W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spectral compensation is available from 157 nm to 1064 nm.

The sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. A DB25 model (PN 1152086) model is available.

The RS232 cable must be powered by 5 VDC. An optional external power supply (PN 1105557) is available.

Large area, water-cooled kW thermopile sensor with UV coating for measuring lasers between 50W and 1000W. Direct RS232 interface.

Key Features:

50W to 1000W range

100 mm diameter active area

UV coating

15 to 1 μm spectral range

Water-cooled

Direct RS232 interface

ISO 17025 accredited

Specifications

Cable Type

RS232

Cooling Type

Water

Power Range

50 to 1000W

Active Area Diameter

100 mm

Detector Coating

Noise Equivalent Power (milliwatts)

Wavelength Range (micrometers)

0.15 to 1 μm

Maximum Power Density (kilowatts per square centimeter)

1 to 2.5 kW/cm2 - power dependent

Maximum Energy Density (millijoules per square centimeter)

600 mJ/cm2

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±3

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

1070

Cable Length (meters)

0.3
