Coherent PowerMax-USB PM1K+ Power Sensor

Updated:2025-03-13

Views:2296

  • Brand: Coherent
  • Model: PowerMax-USB PM1K+
  • Description: This PowerMax-USB PM1K+ sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 1000W. It has a large 50 mm diameter active area, and the spectrally flat BB+ coating is high
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Coherent PowerMax-USB PM1K+ Power Sensor Description：

Datasheet User's Manual

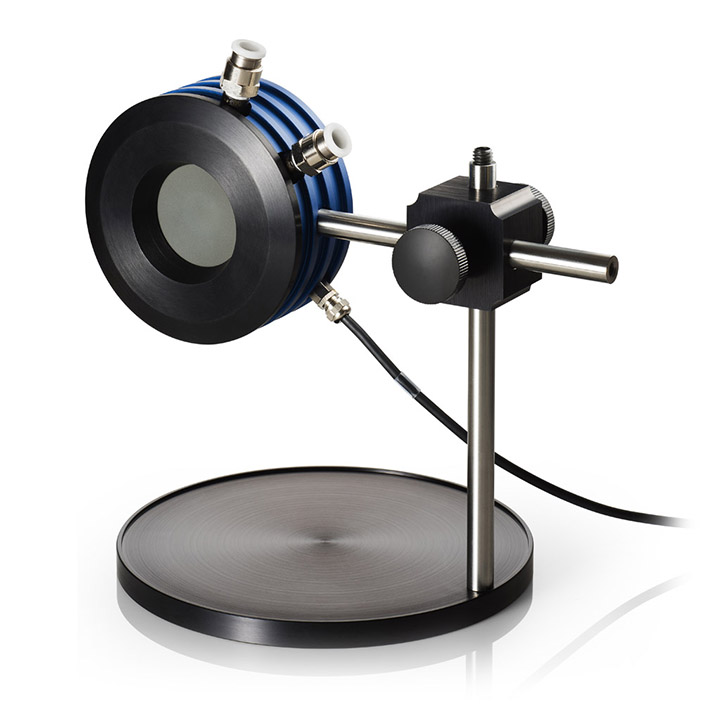

This PowerMax-USB PM1K+ sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 1000W. It has a large 50 mm diameter active area, and the spectrally flat BB+ coating is highly resistant to laser damage.

The sensor is terminated in a USB cable that interfaces directly to a PC.

Water-cooled kW thermopile sensor with BB+ coating for measuring lasers between 5W and 1000W. Direct USB interface.

Key Features:

5W to 1000W range

50 mm diameter active area

Spectrally flat broadband BB+ coating

0.19 to 11 μm spectral range

Direct USB interface

Water-cooled

ISO 17025 accredited

Specifications

Cable Type
USB
Cooling Type
Water
Power Range
5W to 1000W
Active Area Diameter
50 mm
Detector Coating
BB+
Noise Equivalent Power (milliwatts)
100
Maximum Intermittent Power (watts)(<5 minutes)
2000
Wavelength Range (micrometers)
0.19 to 11
Maximum Power Density (kilowatts per square centimeter)
10 to 20
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
5
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±3
Power Linearity (%)
±2
Calibration Wavelength (nanometers)
1070, 10600
Cable Length (meters)
2
Spectral Compensation Accuracy (%)
±1.5
