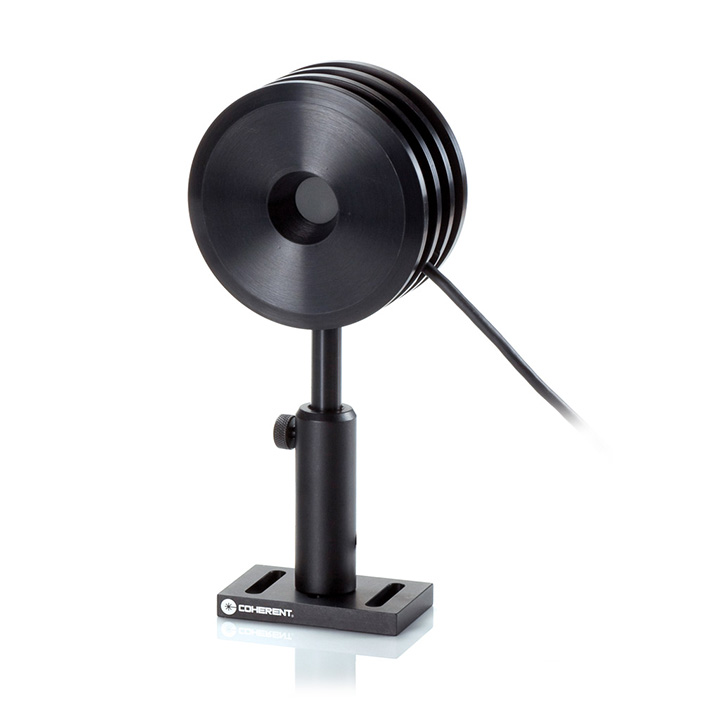

Coherent PowerMax-USB PM30 Power Sensor

Updated:2025-03-13

Views:2756

  • Brand: Coherent
  • Model: PowerMax-USB PM30
  • Description: This PowerMax-USB PM30 sensor is a convectively-cooled laser power sensor intended for measuring lasers up to 30W.The sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Coherent PowerMax-USB PM30 Power Sensor Description：

Datasheet User's Manual

This PowerMax-USB PM30 sensor is a convectively-cooled laser power sensor intended for measuring lasers up to 30W.

The sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1098314) is available.

Thermopile sensor for measuring pulsed & CW lasers between 10 mW and 30W. Direct USB interface.

Key Features:

10 mW to 30W range

19 mm diameter active area

Spectrally flat broadband coating

0.19 to 11 μm spectral range

Convective air-cooled

Direct USB interface

ISO 17025 accredited

Specifications

Cable Type
USB
Cooling Type
Air
Power Range
10 mW to 30W
Active Area Diameter
19 mm
Detector Coating
Broadband
Noise Equivalent Power (milliwatts)
0.5
Maximum Intermittent Power (watts)(<5 minutes)
50
Long-Pulse Joules Range (joules)
0.5 to 50
Wavelength Range (micrometers)
0.19 to 11 μm
Maximum Power Density (kilowatts per square centimeter)
6 kW/cm2
Maximum Energy Density (millijoules per square centimeter)
600 mJ/cm2 10 ns, 1064 nm
Response Time, Speed-up On, 0% to 95% (seconds)
3
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±2
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
10600
Cable Length (meters)
2.5
