Product Manual Technical data sheet

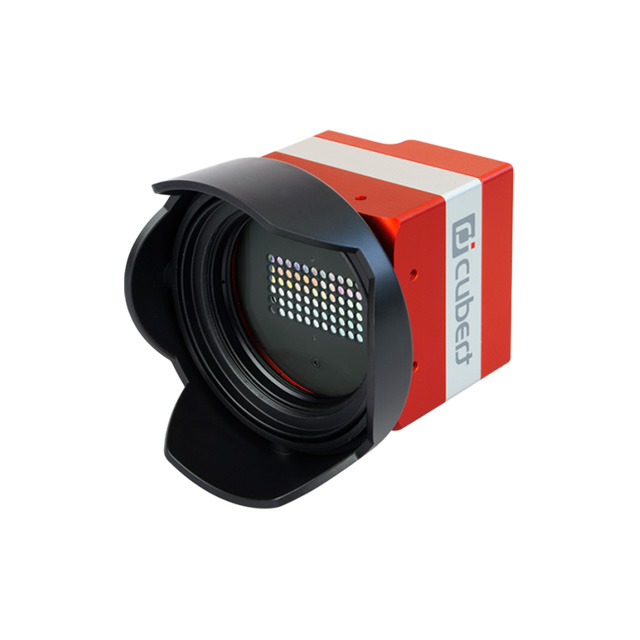

Covering a wavelength range of 350nm to 1000nm in 164 spectral bands, the ULTRIS X20 offers a precise light field-based capture at a native resolution of 410×410 px. This covered wavelength range makes it the first UV/VIS/NIR hyperspectral video imager. Unlike “push-broom” technology, you can expect rich 3D data cubes in real-time without scanning.
The ULTRIS X20 provides a powerful technology that can be adapted easily to accommodate various customer wishes. Its ability to range from ultraviolet to near-infrared makes it suitable for many applications.
Key Features
20 MP hyperspectral video camera (x, y, λ)
350nm to 1000nm (UV-VIS-NIR)
164 spectral bands
410x410 px spatial resolution
Applications
Security & Defense
Biomedical Sensing
Environmental Monitoring
Food and Pharmaceuticals
Technical Specifications
| Technology | Light Field |
| Wavelength Range | 350nm to 1000nm |
| Spectral Bands | 164 |
| Spectral Sampling | 4nm |
| Spatial Resolution | 410x410 px |
| Total Spectra / Image | 168 000 |
| Total Data Points / Cube | 27 Million |
| Data Depths | 12 bit |
| Readout | Global shutter |
| Max Frame Rate | 8 Hz |
| Integration Time | 0.1ms to 1000ms |
| Field of View (FOV) | 35 degrees |
| Power Consumption | 8 W |
| Data Link | 1-2 GigE |
| Weight | 350g |
| Size | 60x60x57 mm |
