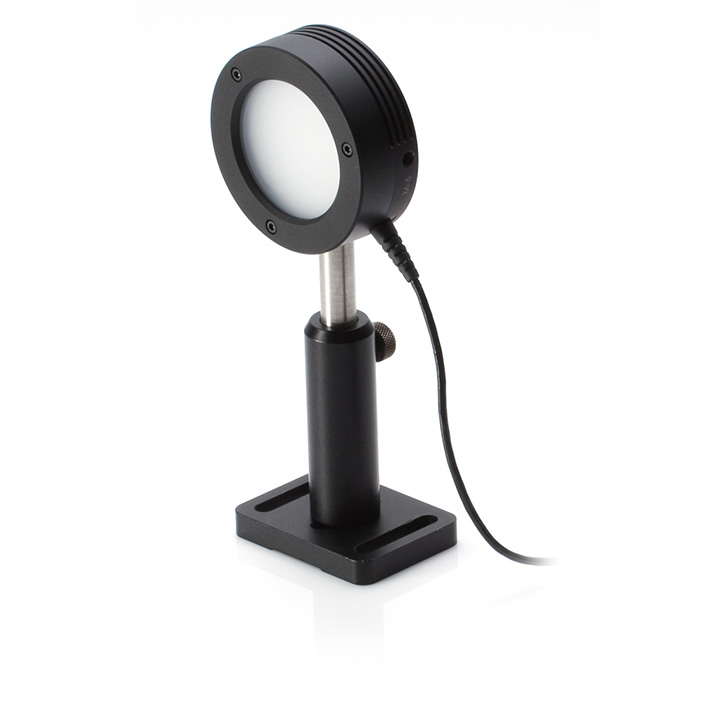

Coherent EnergyMax-USB J-50MT-10KHZ Energy Sensor

Updated:2025-03-13

Views:2649

  • Brand: Coherent
  • Model: EnergyMax-USB J-50MT-10KHZ
  • Description: The EnergyMax-USB J-50MT-10KHZ energy sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1110574) is available.
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Coherent EnergyMax-USB J-50MT-10KHZ Energy Sensor Description：

Datasheet User's Manual

The EnergyMax-USB J-50MT-10KHZ energy sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1110574) is available.

A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 400 μJ - 1J at up to 10000 pps. Direct USB interface.

Key Features:

190 nm to 2.1 μm spectral range

50mm diameter active area

400 μJ - 1J energy range

10000 pps repetition rate operation

Direct USB interface

ISO 17025 accredited

Specifications

Cable Type
USB
Active Area Diameter
50 mm
Detector Coating
Diffuse Metallic
Energy Range
400 μJ to 1J
Wavelength Range
190 nm to 2100 nm
Noise Equivalent Energy
<40 μJ
Maximum Pyroelectric Rep. Rate (pulses per second)
10000
Wavelength Range (micrometers)
0.19 to 2.1
Maximum Average Power (watts)
20
Maximum Pulse Width (microseconds)
1.7
Maximum Energy Density (millijoules per square centimeter)
500 (at 1064 nm, 10 ns)
Diffuser
No
Calibration Uncertainty (%)(k=2)
±2
Energy Linearity (%)
±3
Calibration Wavelength (nanometers)
1064
Cable Length (meters)
3
