Datasheet User's Manual

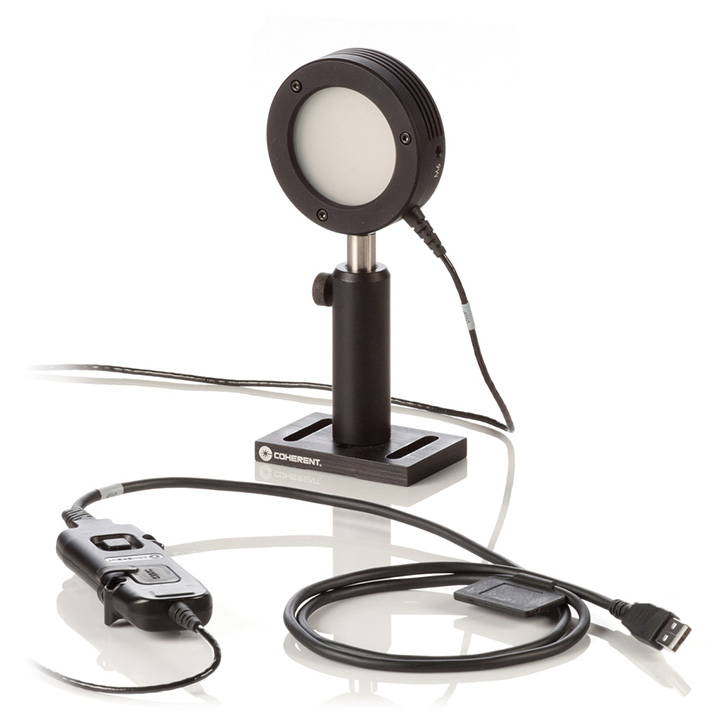

This J-50MUV-193 energy sensor incorporates the MaxUV coating and is optimized for use with ArF lasers operating at 193 nm and KrF lasers at 248 nm. This sensor is directly calibrated at 193 nm and includes spectral compensation from 193 nm to 2.1 μm.
The EnergyMax-USB J-50MUV-193 energy sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1146237) is available.
A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.
Pyroelectric energy sensor with MaxUV coating for measuring laser pulses from 200 μJ to 250 mJ at up to 200 pps. Direct USB interface.
Key Features:
19 to 2.1 μm spectral range
50 mm active area diameter
200 μJ to 250 mJ energy range
200 pps repetition rate operation
Direct USB interface.
ISO 17025 accredited
Specifications
